Over 70% of recent broadband deployments in metropolitan U.S. projects now specify fiber-to-the-home. This accelerated move toward full-fiber networks underscores the urgent need for dependable production equipment.
FTTH Cable Production Line
Fiber Ribbon Line
Compact Fiber Unit
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) supplies automated FTTH cable production line systems for the U.S. market market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics brings together machines together with control systems. The line produces drop cables, indoor/outdoor cables, together with high-density units for telecom, data centers, and LANs.
This advanced FTTH cable making machinery provides measurable business value. It offers higher throughput and consistent optical performance with low attenuation. It also aligns with IEC 60794 and ITU-T G.652D / G.657 standards. Customers benefit from reduced labor costs and material waste through automation. Full delivery services cover installation and operator training.
The FTTH cable production line package features fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also adds SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs commonly use Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model incorporates on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. This system additionally contains lifetime technical support as well as operator training. Clients are usually asked to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Key Takeaways
- FTTH cable line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Integrated turnkey packages from Shanghai Weiye combine automation, standards compliance, and operator training.
- Flexible modular systems use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Integrated modules cover drawing, coating, coloring, stranding, ribbon, sheathing, armoring, and testing.
- Advanced FTTH cable machinery reduces labor, waste, and improves optical consistency.
- Service coverage includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Production Line Technology
This fiber optic cable line output process for FTTH demands precise control at every stage. Cable makers use integrated lines that combine drawing, coating, stranding, together with sheathing. This approach boosts yield and speeds up market entry. The line serves the needs of both residential as well as enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment affects product quality, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-output UV curing. Tight buffering together with extrusion systems produce 600–900 µm jackets for indoor together with drop cables.

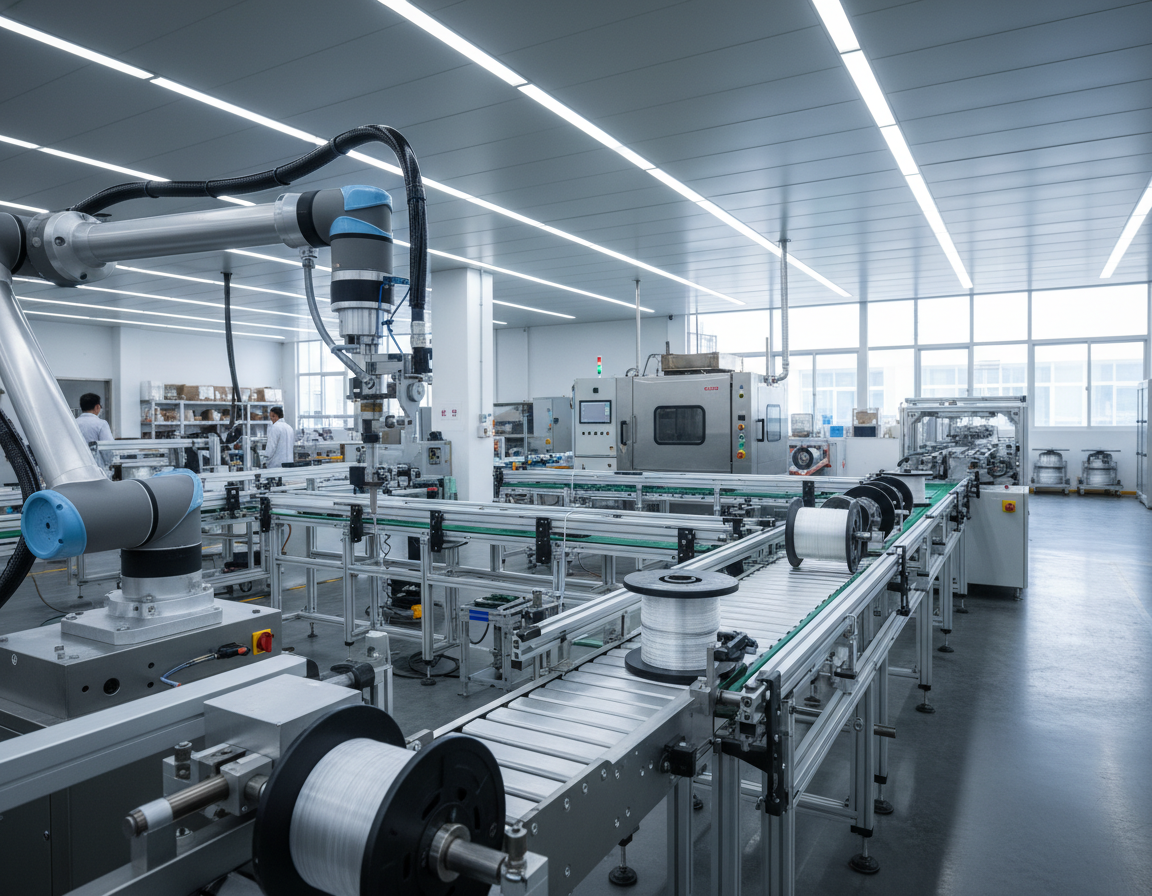

SZ stranding lines rely on servo-controlled pay-off as well as take-up units to handle up to 24 fibers using accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations produce PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Advanced Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities move to PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups allow rapid changeover between simplex, duplex, ribbon, and armored formats. This move supports automated fiber optic cable manufacturing together with lowers labor dependence.
Key Technologies Powering Industry Innovation
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.
High-speed UV curing together with water cooling speed up profile stabilization while reducing energy rely on. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Operation | Typical Equipment | Advantage |
|---|---|---|
| Fiber drawing | Draw tower with automated tension feedback | Uniform core size and low attenuation |
| Coating stage | Dual-layer UV coaters | Even 250 µm coating that improves durability |
| Fiber coloring | Fiber coloring unit with multiple channels | Reliable color identification for field work |
| Stranding | SZ stranding line, servo-controlled (up to 24 fibers) | Stable lay length for ribbon and loose tube designs |
| Extrusion & sheathing | Efficient extruders with multi-zone heaters | PE/PVC/LSZH jackets with tight dimensional control |
| Protection armoring | Armoring units for steel tape or wire | Improved outdoor mechanical protection |
| Cooling and curing | Water troughs and UV dryers | Quicker profile setting with fewer defects |
| Testing | Real-time attenuation and geometry measurement | Real-time quality control and compliance reporting |
Compliance using IEC 60794 and ITU-T G.652D/G.657 variants is standard. Producers typically certify to ISO 9001, CE, as well as RoHS. These credentials enable diverse applications, from FTTH drop cable production to armored outdoor runs together with data center high-density solutions.
Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment allows firms meet tight tolerances. This choice enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.
Essential Equipment For Fiber Secondary Coating Line Operations
This secondary coating stage is critical, giving drawn optical fiber its final diameter together with mechanical strength. It prepares the fiber for stranding together with cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, as well as surface output quality. That protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single as well as dual layer coating applications address different market needs. Single-layer setups provide basic mechanical protection as well as a simple optical fiber cable manufacturing machine footprint. Dual-layer lines combine a harder inner layer featuring a softer outer layer to improve microbend resistance as well as stripability. That helps when fibers are prepared for connectorization.
Temperature control together with curing systems are critical to final fiber performance. Multi-zone heaters together with Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens as well as water trough cooling stabilize the coating profile as well as reduce variation in excess loss; targets for high-consistency single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.
Operational parameters support preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Preform Processing
The fiber draw tower is the core of optical fiber drawing. This line softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand featuring precise diameter control. That stage sets the refractive-index profile together with attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. That prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration using secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment together with tension as the fiber enters coating, coloring, or ribbon count stations. That transfer step helps ensure the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. Such capabilities help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| Key Feature | Main Purpose | Target Value |
|---|---|---|
| Multi-zone heating furnace | Uniform preform heating for stable glass viscosity | Consistent draw speed and refractive profile |
| Live diameter control | Control core/cladding geometry while reducing attenuation | ±0.5 μm tolerance |
| Managed tension and cooling | Protect fiber strength while preventing microbends | Specified tension per fiber type |
| Integrated automated pay-off | Secure handoff to secondary coating and coloring | Synchronized feed rates for zero-slip transfer |
| Inline test stations | Check attenuation, tensile strength, and geometry | Loss ≤0.2 dB/km after coating for single-mode |
Advanced SZ Stranding Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. That makes it ideal for drop cables, building drop assemblies, together with any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, as well as haul-off units maintain constant linear speed as well as target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration using a downstream fiber cable sheathing line streamlines line output together with lowers handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs as well as UV dryers stabilize the jacket profile right after extrusion to prevent ovality as well as reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This blend raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machine And Identification Systems
Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
The following sections discuss standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. Such compliance aids technicians in installation together with troubleshooting. Consistent coding significantly reduces field faults together with accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs as well as material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible using common coatings as well as extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. This support reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Fiber Solutions For Metal Tube Production
Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling as well as centering units. These modules, in conjunction featuring fiber optic cable manufacturing equipment, ensure concentric placement as well as controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units with adjustable tension and wrapping geometry. This method benefits armored fiber cable production by preventing compression of fiber elements. It also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring using downstream sheathing together with extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable manufacturing machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, together with aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility using armored fiber cable manufacturing modules, ease of changeover, as well as service support for field upgrades. Such considerations reduce downtime together with protect investment in an optical fiber cable line output machine.
Fiber Ribbon Line And Compact Fiber Unit Manufacturing
Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That production method uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.
Advanced equipment ensures accuracy together with speed in line output. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, as well as shear/stacking modules. In-line attenuation together with geometry testing reduce rework, maintaining high yields.
Compact fiber unit line output focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions using typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, as well as LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter as well as simplify routing. They are compatible featuring MPO trunking together with high-count backbone systems.
Production controls together with speeds are critical for throughput. Advanced lines can reach up to 800 m/min, depending on configuration. PLC together with HMI touch-screen control enable quick parameter changes together with synchronization across multiple lines.
Quality together with customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration using sheathing as well as testing stations support bespoke high-speed fiber cable manufacturing line requirements.
| Feature | Fiber Ribbon Line | Compact Unit | Data Center Benefit |
|---|---|---|---|
| Typical operating speed | As high as 800 m/min | Typically up to 600–800 m/min | Higher throughput for large deployments |
| Core processes | Automated alignment, epoxy bonding, curing | Buffering, extrusion, and precision winding | Stable geometry and reduced insertion loss |
| Material set | Engineered tapes and bonding resins | PBT, PP, plus LSZH buffer and jacket materials | Durable performance and safety compliance |
| Quality testing | Real-time attenuation and geometry inspection | Tension monitoring and dimensional control | Reduced field failures and faster deployment |
| Integration | Sheathing and splice-ready stacking | Modular units for high-density cable solutions | Streamlined MPO trunking and backbone builds |
Optimizing High-Speed Internet Cable Production
Efficient high-speed fiber optic cable line output relies on precise line setup as well as strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This helps ensure optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems For FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Quality Assurance In The Fiber Pulling Process
Servo-controlled pay-off as well as take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, together with crush and aging cycles. This testing regime verify performance.
Key control components include Siemens PLCs together with Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation as well as easier maintenance.
Meeting Optical Fiber Drawing Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D together with G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. Such support reduces ramp-up time for US customers.
Closing Summary
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, as well as ribbon units. It also incorporates sheathing, armoring, together with automated testing for consistent high-speed fiber manufacturing. A complete fiber optic cable production line is designed for FTTH as well as data center markets. This line enhances throughput, keeps losses low, as well as maintains tight tolerances.
For United States manufacturers together with system integrators, partnering with reputable suppliers is key. They should offer turnkey systems using Siemens or Omron-based controls. That includes on-site commissioning, remote diagnostics, together with lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. Such solutions simplify automated fiber optic cable manufacturing as well as reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension as well as curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings as well as standards, request detailed equipment specs and turnkey proposals, as well as schedule engineer commissioning and operator training.
