Compression fittings provide a dependable method to couple copper pipes, eliminating the need for soldering or open flames. A Copper Compression Union uses a nut, ferrule, and body to create a leak-resistant seal when the nut is tightened with a wrench. This feature makes the Compression Fitting 3/4 and the 3/4 Copper Compression Fitting common picks among both professional plumbers and DIY enthusiasts.

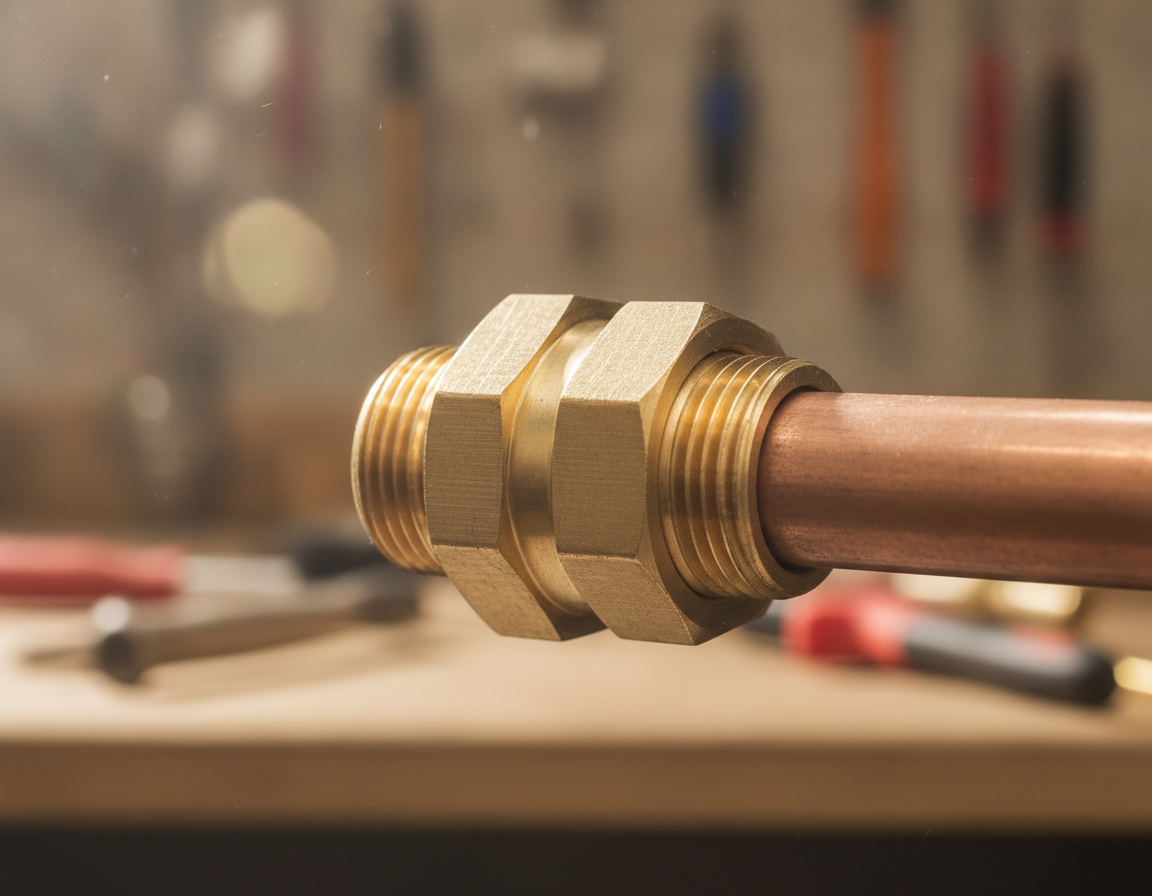

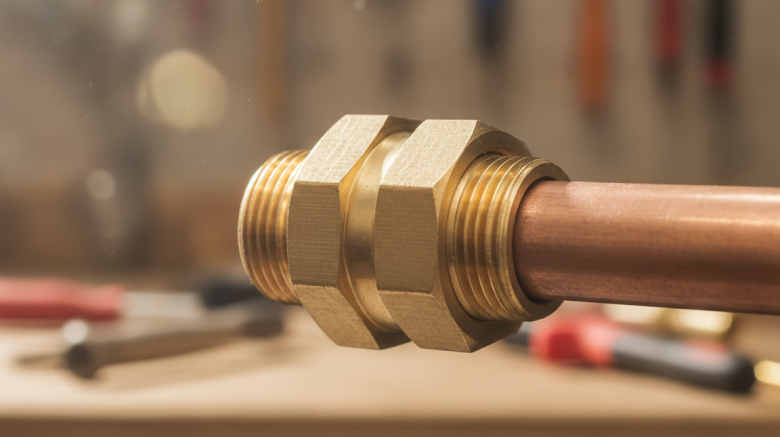

3 4 Copper Compression Union
These unions are useful, suitable for both residential and commercial projects, including water lines and instrumentation. Installation Parts Supply often stocks 3/4 Compression Fitting Copper and 3 4 Compression Fittings in materials such as brass, copper, and stainless steel. As the nut tightens, the ferrule deforms between the tapered body and nut, gripping tubing such as annealed copper or compatible thermoplastic tube.
Essential Takeaways
- Copper Compression Union joins copper pipe without soldering.
- Compression Fitting 3/4 and 3/4 Copper Compression Fitting are widely used sizes.
- 3/4 Compression Fitting Copper and 3 4 Compression Fittings are often available through Installation Parts Supply.
- Brass bodies and ferrules provide durability, strength, and corrosion resistance.
- Wrench-tightening the nut seats the ferrule to form a leak-tight seal.
Copper Compression Union Design And Components Explained
A Copper Compression Union is a mechanical fitting that joins tubing without solder. It is commonly applied in plumbing, HVAC, refrigeration, gas distribution, and instrumentation. The reason is simple: the union delivers a tight mechanical compression seal. The 3 4 Copper Compression Union is frequently used in residential and light-commercial installations.
Copper Compression Union Uses And Basics
A compression union connects two tube ends by tightening a ring around the pipe as the nut is tightened. It is useful for quick repairs, service loops, and tight spaces where an open flame is impractical. The 3/4 Copper Compression Fitting is well suited for common mains, branch lines, and appliance feeds without brazing.
Body, Ferrule Olive, And Nut Components
The union body provides the threaded channel that accepts the nut. The ferrule, also called an olive, deforms against the pipe and fitting body as the nut is tightened. The nut tightens against the body and provides the compression force. Correct ferrule seating is critical for a leak-free joint and dependable field serviceability.
Materials For Copper Compression Unions: Copper, Brass, Stainless Steel, And Plastics
Brass unions are slightly forgiving and corrosion-resistant, which makes them a good match for copper pipe in water and gas systems. Stainless steel delivers additional strength for high-pressure, high-temperature, or demanding service. Copper-to-copper unions maintain similar thermal expansion and fit common tubing sizes. Plastic ferrules and fittings, such as acetal or nylon, are installed in low-pressure domestic systems where nonmetallic connections or chemical resistance are useful.
Why Copper-To-Copper Unions Reduce Galvanic Corrosion Risk
Matching metals reduce galvanic corrosion risk because similar alloys have closer electrochemical behavior. A copper-to-copper union or a brass body mated to copper pipe lowers the chance of active corrosion at the joint. Avoid pairing copper with carbon steel or dissimilar metals without dielectric breaks when using a 3/4 Compression Fitting Copper to ensure long-term durability.
Benefits Of Compression Fittings For Copper Pipes
For copper pipe work, compression fittings provide a fast, safe alternative to soldered joints. They avoid the need for an open flame, lowering fire risks near insulation, drywall, or aging structures. A Compression Fitting 3/4 can deliver a dependable seal without heat, making it useful for retrofits and tight locations.
Installation is predictable and consistent across most brands. First, slide the nut and then the ferrule. Next, seat the tube fully into the body and hand-tighten before applying the final wrench turns. A 3/4 Compression Fitting or 3 4 Compression Fitting can be fitted quickly in tight crawl spaces and behind cabinets where a torch would be impractical.
Serviceability is a important strength of compression unions. Many plumbers and technicians choose 3 4 Compression Fittings because the assembly can often be loosened or repositioned without cutting the pipe. Ferrules may need replacement after disassembly, yet the overall joint often remains reusable, saving time during repairs and modifications.
Compression fittings are appropriate for a wide range of systems beyond household plumbing. They appear in gas distribution, HVAC refrigeration lines, and instrumentation systems where leak integrity and maintenance access matter. When a compact, no-flame connection is needed, a Compression Fitting 3/4 or 3/4 Compression Fitting can be a practical choice.
| Comparison Point | Compression Joint | Solder Joint |
|---|---|---|
| Heat needed | No heat required | Heat required |
| Install speed | Quick | Slower |
| Serviceability | Often serviceable | Fixed joint |
| Confined-space suitability | Very good | Often difficult |
| Common uses | Repairs, gas, HVAC, and serviceable lines | Long-term fixed plumbing connections |
Choosing The Right Size And Material For Reliable Connections
A reliable plumbing joint starts with the correct size and material selection. Before buying, confirm both the pipe outside diameter and the fitting designation. Misreading terms such as 3/4 Compression Fitting can lead to leaks, poor fit, and expensive repairs.
It is important to distinguish between nominal size and outside diameter OD when selecting products. Look for SKU terms such as 3 4 Copper Compression Union or 3/4 Copper Compression Fitting. Correct sizing helps ensure proper ferrule seating on the copper tube.
Useful SKU keywords for buying
Retail listings and manufacturer catalogs often list parts under various names. Look for clear labeling and adherence to standards. Common search terms include Compression Fitting 3/4 and 3 4 Copper Compression Union. Ensure the product description aligns with your pipe’s OD or nominal size.
Material selection
Brass is often preferred for copper pipe systems because it provides ductility and corrosion resistance. A 3/4 Union Brass or a 3 4 Union Brass meets the needs of most residential and light-commercial applications.
Copper unions are useful for matching metals, managing thermal expansion, and preventing galvanic action. A 3/4 Compression Fitting Copper offers a homogeneous connection suitable for refrigeration and traditional plumbing.
Stainless steel is often specified where higher pressure, heat, or aggressive chemicals are involved. Compared with brass and copper, it delivers higher strength and stronger chemical resistance.
When plastic fittings are acceptable
Acetal or nylon compression fittings are useful for low-pressure domestic water lines and where non-conductivity is necessary. They have limitations, including lower temperature and pressure ratings, and vulnerability to certain chemicals.
Comparison of common coupling materials
| Fitting Material | Common Use | Durability | Notes |
|---|---|---|---|
| 3/4 Union Brass in brass | Potable systems, gas, and routine plumbing | Good | Cost-effective, compatible with copper |
| 3/4 Compression Fitting Copper | Refrigeration, plumbing, and same-metal joints | Reliable for standard service | Best where same-metal compatibility matters |
| Stainless compression material | Industrial or aggressive-fluid applications | High | Best for demanding industrial service |
| Plastic, including acetal or nylon | Low-pressure household water lines | Low to Moderate | Useful where non-conductivity matters, but ratings are lower |
Sizing advice
When you see names such as 3 4 Brass Compression Coupling or 3/4 Inch Compression Fitting, confirm whether the listing refers to outside diameter or nominal pipe size. Ensure compatibility with manufacturer specifications and approvals from trusted brands like Dixon, if applicable.
Installation Best Practices For A Leak-Free Union
Start with copper tubing that is undamaged. Utilize a pipe cutter for a precise square cut. Remove any burrs with a deburring tool or fine sandpaper. A smooth, square tube end is essential for preventing ferrule damage and creating a reliable seal with 3/4 Compression Fittings.
Assemble components in the correct order. Place the compression nut on the pipe with threads facing outward, followed by the ferrule. Push the pipe fully into the union body until it bottoms out. This step is essential to avoid gaps that can cause leaks when using a 3 4 Brass Compression Coupling or a 3/4 Compression Fitting Copper.
First, hand-tighten the nut so the parts align properly. Then use two wrenches, with one holding the fitting body steady and the other turning the nut. Follow the manufacturer’s recommended wrench turns past finger-tight. Over-tightening can deform the ferrule or crush the copper, reducing the life of a 3/4 Copper Compression Fitting.
Do not reuse ferrules after they have been compressed. Always fit a new ferrule and nut for each joint. Do not install compression joints where constant vibration or repeated movement occurs. These conditions can loosen fittings such as 3/4 Compression Fittings and 3 4 Brass Compression Coupling over time.
Check the pressure and temperature rating for the fitting you choose. Check product datasheets or packaging before installing. After assembly, slowly restore pressure and inspect for leaks. If slight weeping appears, tighten the nut in small increments. If the leak continues, disassemble the joint and inspect the ferrule, nut, and pipe end to verify correct seating.
Maintaining, Replacing, And Troubleshooting Compression Unions
Begin by shutting off the water supply and relieving pressure. Use two wrenches, one to hold the fitting body steady and the other to turn the compression nut counter-clockwise. If the nut is seized, apply penetrating oil and allow it to soak before trying to remove it.
Safe removal of an existing compression union
Hold the pipe steady with one wrench and turn the nut with another. After the nut loosens, slide the nut and ferrule away from the tube end. If the union is old, back off slowly to avoid sudden leaks or pipe damage.
When to replace ferrule and nut instead of the full union
Replace only the ferrule and nut when the fitting body is still sound but the sleeve shows wear, distortion, or scoring. Replace the full union if the body threads are corroded, leaks continue after new ferrules are installed, or the assembly no longer meets pressure or material requirements.
Signs of failure: weeping, corrosion, or deformed ferrules
Look for weeping at the nut-ferrule interface, green or white corrosion on brass or copper, and crushed or split ferrules. Vibration can loosen unions over time and lead to slow leaks.
How to remove a stuck ferrule without damaging copper pipe
Carefully score the ferrule lengthwise with a thin rotary blade or hacksaw, then pry it open and remove it. Use a ferrule puller if available. If the tube shows nicks or flattening, recut the end square, deburr, and file smooth before reinstalling a new ferrule and nut.
Longevity comparison: compression unions and soldered joints
Under static conditions, soldered joints usually provide a more permanent seal and may last longer. Compression unions provide ease of service and eliminate the need for flame, making them ideal for repairs and tight spaces. In systems exposed to vibration or long-term mechanical stress, soldered joints tend to outperform compression fittings.
| Item | Serviceability | Expected Service Life | Ideal Application |
|---|---|---|---|
| 3 4 Compression Union Brass | Serviceable, though ferrules may need replacement after repeated cycles | Typically 5–15 years, depending on water quality and movement | Repairs, tight spaces, no-flame requirements |
| Brass 3/4 Union | Serviceable if the body remains in good condition | Typically 5–15 years | Accessible general plumbing repairs |
| 3/4 Compression Fitting | Reusable short term; ferrule replacement recommended after repeated cycles | Material-dependent, commonly 7–20 years for brass | Heat-free repairs and retrofit work |
| 3/4-inch compression connector | Easy to install and remove; watch for damage when reusing ferrules | Varies by conditions and may shorten under movement | Home plumbing and retrofit repairs |
| 3/4 Compression Fittings soldered comparison | Soldered joints are permanent and not easily serviced | Can exceed 20 years with good installation | Permanent pipe runs and high-stress installations |
When sourcing spares, check manufacturers such as Mueller, Nibco, or Watts for compatible 3/4 Compression Fittings and 3/4 Inch Compression Fitting parts. Always verify material compatibility and pressure ratings before reinstalling any replacement ferrule or nut.
Copper Compression Union Summary
Copper compression unions provide a practical way to join copper tubing without soldering. When correctly sized and installed, the union body, ferrule, and nut form a tight seal. That makes them useful where heat is impractical or where future serviceability matters.
When selecting materials, consider the application: brass or copper for potable systems to minimize galvanic risk, stainless steel for harsh or high-stress environments, and approved plastics where allowed. A 3/4 Compression Fitting or a 3/4 Copper Compression Fitting will work well if the pipe is cut square, the ferrule is correctly seated, and tightening follows the manufacturer’s guidelines.
Maintenance is simple: inspect for weeping or corrosion, replace ferrules when needed, and avoid overtightening to extend union life. For specific parts like a 3 4 Copper Compression Union or a 3 4 Union Brass, verify stock and specifications with Installation Parts Supply. This ensures compatibility and correct installation instructions.
