Stainless steel sanitary pipe fittings are critical in maintaining contamination-controlled systems across multiple industries. These components, including ferrules, clamps, sanitary valves, and fittings, are designed to keep fluid paths clean. They reduce contamination risk while making cleaning, inspection, and maintenance easier.

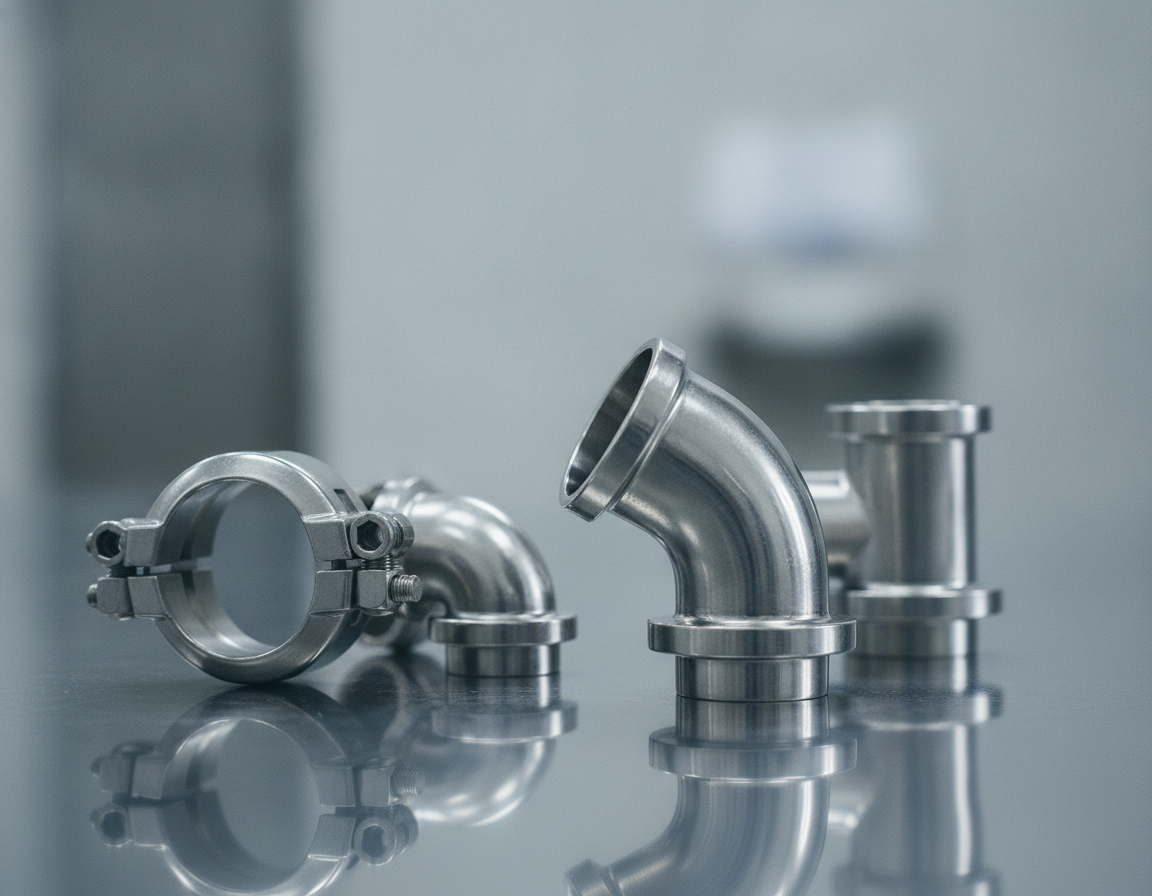

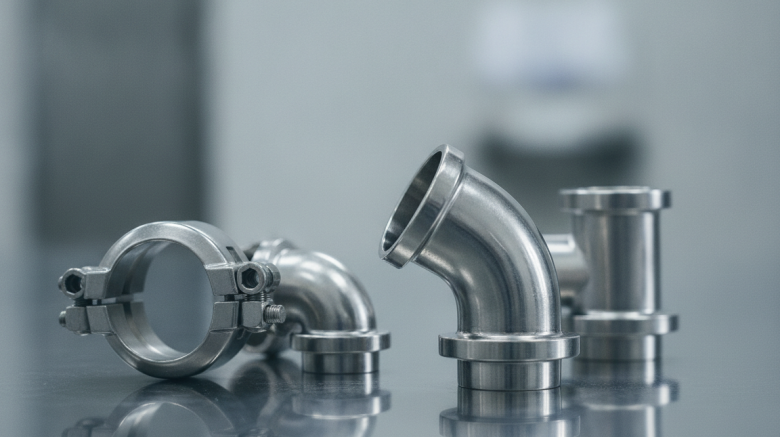

Sanitary Pipe Fittings Stainless
The choice of Hygienic Fittings and Ss Sanitary Fittings strongly affects product safety, system uptime, and adherence to regulations. The material grade, surface finish, and compatibility of connections are critical factors. They determine the ease with which a system can be validated and maintained.
Reliable suppliers and detailed catalogs are essential for operations teams to select the right parts. Brands like CSI and distributors such as Installation Parts Supply provide essential information. They include catalog listings, lead times, and customer reviews to guide purchasing decisions for Sanitary Valves And Fittings.
Important Takeaways
- Stainless Steel Sanitary Pipe Fittings are critical for contamination control in clean systems.
- Cleanability and corrosion resistance are influenced by material grade and surface finish.
- Compatible Hygienic Fittings help reduce downtime during upgrades, changeovers, and maintenance.
- Supplier catalogs and reviews from CSI and Installation Parts Supply aid reliable sourcing.
- Choosing the right Sanitary Valves And Fittings supports product quality and regulatory compliance.
Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems: Overview
Clean-process systems need components made for hygiene, safety, and efficiency. A sanitary fitting should provide smooth surfaces, tight seals, and accessible cleaning points. These features reduce contamination and support clean-in-place and sterilize-in-place procedures.
Sanitary Fittings Definition And Purpose
Sanitary fittings, often called hygienic fittings, are specified to create crevice-free connections. That design reduces bacterial growth and helps maintain product purity during transfer and processing. Their design enables faster cleaning while reducing cross-contamination risk.
Industries That Use Hygienic Fittings
Food processors rely on hygienic fittings to adhere to safety standards and prevent spoilage. Beverage manufacturers use them to safeguard flavor and shelf life. Pharmaceutical facilities choose fittings that meet strict regulatory and validation requirements.
Biotech facilities need precise sanitary connections for cell culture and fermentation. These industries prioritize traceability, repeatable cleaning, and compatible materials.
Why Stainless Steel Is Preferred For Sanitary Applications
Stainless steel is widely chosen because it provides corrosion resistance, mechanical strength, and easy cleanability. Grades like 304 and 316L withstand chemicals and high temperatures. They also accept surface finishes such as electropolishing and low Ra values.
Stainless components reduce bacterial growth and extend service life under aggressive cleaning. Tri Clover Sanitary Fittings and other standardized interfaces simplify assembly, inspection, and maintenance in hygienic systems.
Stainless Steel Sanitary Pipe Fittings Explained
In modern food, beverage, and pharmaceutical systems, stainless steel sanitary pipe fittings are essential. The right material, product type, and surface finish are important to reducing contamination risk and making cleaning easier. This guide will cover common grades, typical component families, and finish options for hygienic performance.
Materials And Grades Commonly Used
Type 304 stainless steel delivers corrosion resistance and mechanical strength, making it suitable for many general processing lines. It is often used for tanks, supports, and areas with lower risk of product contact.
Type 316L offers superior resistance to chloride pitting and crevice corrosion. Pharmaceutical companies frequently choose 316L for wetted parts due to its low carbon content, which prevents sensitization during welding.
Matching stainless grades across components helps maintain corrosion resistance and reduce galvanic issues at connections. Specifying 304 or 316L early in design simplifies procurement of SS Sanitary Fittings and related parts.
Sanitary Fitting Product Types And Functions
Ferrules serve as the basic connection points for butt-weld and weld-in assemblies. They are available in 304 or 316L with polished IDs to match process piping.
Two-piece clamps, known as Tri-Clamp or Tri-Clover style, enable quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings help create smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings join flexible lines and permanent pipe runs. Sanitary Valves And Fittings control flow while preserving hygienic, cleanable profiles. Designing a system with compatible SS Sanitary Fittings reduces downtime and leak risks.
Surface Finish And Cleanability Requirements
Surface roughness directly affects how residues cling to metal surfaces. A 32RA internal finish is a common spec that balances cost and cleanability for most food and beverage applications.
Electropolishing further smooths the stainless surface and improves passivity. This treatment helps limit microbial harborage and improves corrosion resistance in aggressive environments.
Specifying matching finishes across ferrules, clamps, valves, and weld fittings supports hygienic integrity. When parts share matching 32RA or electropolished surfaces, cleaning validation is simpler.
| Sanitary Component | Common Material | Common Finish | Primary Use |
|---|---|---|---|
| Ferrules for welded assemblies | 304 / 316L stainless | 32RA internal/external finish | Pipe-end transitions and welded joints |
| Two-piece clamps Tri-Clamp | 316L preferred | Polished or electropolished finish | Quick-release sanitary connections |
| Weld fittings and couplings | 304 / 316L | 32RA, electropolished optional | Welded joins and directional changes |
| Sanitary flexible-line fittings | 316L commonly used | Electropolished product-contact surfaces | Hose-to-pipe transfer connections |
| Sanitary Valves And Fittings | 316L for wetted parts | Smooth polished flow paths | Cleanable flow control in process lines |
Tri Clover Fittings And Tri-Clamp Fittings Catalog Options
Tri Clover Pipe Fittings follow strict dimensional standards that support cross-manufacturer compatibility. Standards such as DIN 32676 and DIN 11864-3A define ferrule-face geometry and clamp interfaces. This helps ensure sanitary lines remain leak-free and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When reviewing a Tri-Clamp Fittings Catalog, focus on size range, material grade, pressure ratings, and surface finish. Catalogs often list two-piece clamps from 0.25″ to 4″, including single-pin options and matching gaskets. Ferrules are detailed with length and finish, with common options being 304 and 316L, finished to 32RA for enhanced cleanability.
Key items in catalogs include clamps, ferrules, and gasket sets, sized in inches or DN. Small two-piece clamps may start under ten dollars, while larger clamps often fall in the low double-digit range. Each Triclover Fitting listing should show OAL, ID/OD finish, gasket compatibility, and material grade. This helps ensure the correct part is selected when ordering.
High-pressure applications may require double-bolt or heavy-duty two-piece clamps. These clamps may use a 304 stainless body with brass nuts to balance strength, corrosion resistance, and tightening performance. For critical process lines, choose high-pressure clamps by rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
Material choice affects service life, cleanability, and corrosion resistance. 316L ferrules deliver superior resistance to chlorides in harsh environments. Make sure the Tri-Clamp Fittings Catalog lists ferrule metallurgy, clamp construction, and finish details. This helps with the selection of Tri Clover Pipe Fittings based on application needs and service conditions.
Spec sheets should include clamp size charts, ferrule dimensions, surface finishes, and part numbers to streamline procurement. A well-organized catalog supports quick replacement of Triclover Fittings, minimizing downtime. Seek suppliers that publish detailed specs for each Tri Clover Fitting to ensure interchangeability across brands.
Sanitary Connections, CSI Sanitary Fittings, And Compatibility
Sanitary connections are essential for joining pipes, valves, pumps, and equipment in clean systems. The right joint type is critical for maintaining hygiene and efficiency. This section will cover common connection styles, brand interchangeability, and customer feedback on supplier reliability.
Common connection types include Tri-Clamp connections, butt-weld fittings, socket-weld fittings, threaded links, and sanitary hose fittings. Each type has its own pros and cons regarding assembly speed, cleanability, and leak risk.
Clamp connections are popular because they assemble quickly and can be disassembled easily for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are generally more suitable for low-risk or utility applications where product contact is not critical. Sanitary hose fittings need matched ferrules and a secure Sanitary Coupling to help prevent leaks.
Brand compatibility is important when mixing components. CSI Sanitary Fittings and Csi Fittings use common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien publishes specification sheets that help confirm compatibility with major Tri-Clamp systems when the standards match.
To confirm compatibility, match nominal size, sealing face, material grade, and surface finish. Check datasheets for standards such as DIN 32676 and DIN 11864. Mismatched finishes or grades can cause corrosion, leakage, or product-residue traps.
Customer reviews can provide practical insight into supplier reliability and fulfillment speed. Reviews for CSI show consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Other customers highlight responsive communication after order questions or technical inquiries.
When evaluating suppliers, review lead times, documented quality, and after-sale support. Reliable shipping and clear specification sheets help reduce downtime and avoid costly returns when buying Sanitary Connections, CSI Sanitary Fittings, or Steel & O’Brien components.
| Sanitary Connection | Best Use | Cleaning Performance | Compatibility Notes |
|---|---|---|---|
| Clamp Tri-Clamp | Frequent disassembly; product contact lines | Easy cleaning when gasket and ferrules match | Strong interchangeability when standards, faces, and sizes align |
| Welded sanitary connections | Permanent process runs requiring smooth internal bores | Very high when welded and polished correctly | Standardized dimensions ensure cross-brand fit for ferrules and couplings |
| Threaded sanitary-style connection | Low-risk applications away from product contact | Lower cleanability where threads contact process fluids | Use carefully and confirm grade, thread style, and finish |
| Hose with Ferrule | Flexible runs and transfer lines | Good when ferrule, gasket, and clamp match | Needs the correct ferrule profile and Sanitary Coupling to prevent leaks |
Sanitary Pipe Fittings Stainless And SS Sanitary Fittings Selection Guide
Selecting the correct sanitary components requires a focused review of size, material, finish, and pressure. This guide supports you match size, material, and finish to your process needs. Use the metrics and checks below to reduce downtime and ensure hygienic performance.
Start with size, designation, and connection standard. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog mappings include DN20, DN25, DN32, DN40, DN50, DN65, and DN100 matched to 0.25″–4″ Tri-Clamp sizes. Check mating faces, gasket grooves, and flange profiles to confirm compatibility.
Material selection is a key part of sanitary fitting specification. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Many suppliers list 316L ferrules and fittings as standard choices for harsh service environments.
Surface finish and gasket choice affect cleanability and seal life. Specify finish targets such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-sections and clamp pressure to avoid leaks.
Assess pressure and clamp type. Standard sanitary clamps handle many everyday sanitary services. High-pressure applications call for reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review catalog pressure ratings and choose clamps rated above operating pressure to provide a safety margin.
Copper Tri Clamp Fittings may be considered for specialized or niche applications. Copper tri clamp fittings can provide conductivity and antimicrobial benefits in certain systems. Validate compatibility with cleaning agents, product chemistry, and dissimilar metal corrosion risks when pairing copper with stainless lines.
Final checks save costs. Compare catalog part numbers against DN/TC inch equivalents, confirm grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, clamp pressure, and part numbers to streamline spare-parts ordering and maintenance.
Sanitary Coupling And Sanitary Weld Fittings Installation, Maintenance, And Best Practices
Keeping sanitary connections clean and reliable is critical in hygienic systems. Follow defined assembly steps for tri-clamp assemblies and welded joints to reduce leaks and contamination risk. Keeping detailed records of materials, finishes, and maintenance is essential for traceability and audits.
Best-practice assembly steps
Begin by thoroughly cleaning ferrule faces and checking gaskets for any defects. Place the gasket between the ferrule faces, ensuring the sealing surfaces are aligned. Next, install the clamp, hand-tighten it, and then apply specified torque using a calibrated wrench. For high-pressure applications, use double-bolt clamps with suitable hardware and follow recommended torque values to avoid over-compression.
Guidance for Sanitary Weld Fittings
For weld joints, prepare tube ends to the specified Ra finish before welding. Use inert gas purging to reduce oxidation on 316L stainless steel. After welding, inspect weld contour, internal profile, and surface smoothness. If necessary, rework any rough spots by grinding and electropolishing to restore the low roughness and maintain hygiene.
Routine Sanitary Maintenance
Run CIP and SIP cycles according to process requirements. Regularly inspect ferrule faces, clamps, and gaskets after thermal cycles and scheduled cleanings. Replace gaskets when they show hardening, extrusion, cuts, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Troubleshooting common issues
When leaks appear, first check clamp seating, gasket condition, and ferrule alignment. Misaligned clamps can cause uneven compression and leaks. To correct this, loosen the assembly, realign it, and retighten to the specified torque. For gasket extrusion or failure, confirm the correct gasket material and durometer, and verify that groove dimensions match ferrule specifications.
How to address surface damage
Surface damage such as scratches, pits, or crevice corrosion can trap microorganisms and residues. Minor scratches can be polished out and then electropolished to restore the Ra levels. Components should be replaced if pitting penetrates the surface or if polishing would remove too much material.
Recordkeeping and documentation
Maintain detailed records of material grades, surface finishes, gasket materials, clamp models, torque values, and service dates. Maintain calibration records for torque tools and welding equipment. Accurate records strengthen regulatory compliance and expedite troubleshooting efforts.
| Maintenance Task | Interval | Main Step | Service Notes |
|---|---|---|---|
| Sanitary clamp torque verification | After installation and on a monthly schedule | Check with calibrated torque wrench | Follow manufacturer torque tables by Sanitary Coupling size |
| Gasket inspection/replacement | Every 3 to 12 months or when failure occurs | Inspect for cuts, hardening, extrusion | Use matching material, profile, and durometer |
| Surface finish inspection | After weld work and during quarterly checks | Measure roughness and inspect visually | Electropolish if Ra exceeds spec for hygienic areas |
| Weld profile inspection | After installation and during annual review | Check for undercut, porosity, discoloration, and profile | Repair, polish, and revalidate Sanitary Weld Fittings as required |
| CIP and SIP validation | Per process cycle | Monitor time, temperature, concentration | Document results for validation and regulatory review |
Where To Buy: Sanitary Fittings Catalogs, CSI Fittings, And Installation Parts Supply
Starting with a detailed catalogue review is important. Look for a Sanitary Fittings Catalog that lists material grade, surface finish, dimensions, and pressure rating. It should also reference standards such as DIN 32676 or DIN 11864-3A. Confirm item codes and stock status before ordering to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, check clamp type, gasket compatibility, and dimensional specs. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog keeps matching gaskets and clamps easier during assembly.
Evaluate Csi Fittings by reading independent reviews, checking supplier lead times, and comparing published specifications. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to compare market pricing and common stocking sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Item | Nominal Size | Material | Finish | Catalog Price USD |
|---|---|---|---|---|
| Single-pin two-piece clamp | Quarter-inch to three-quarter-inch | 304 stainless | Standard finish | $3.91 |
| Two-piece single-pin sanitary clamp | 1 inch | Type 304 stainless steel | Standard | Approx. $4.91 |
| Two-piece single-pin clamp | 2 inch | 304 stainless | Standard finish | $5.99 |
| Two-piece single-pin sanitary clamp | 2.5 inch | 304 | Standard catalog finish | Approx. $6.93 |
| Two-piece single-pin clamp | 3 inch | 304 stainless | Standard finish | $7.54 |
| Two-piece single-pin clamp | Four-inch size | 304 | Standard catalog finish | 9.16 USD |
| Tri-Clamp ferrule | 2 inch with 1.125 inch OAL | 316L stainless | 32RA ID and OD | Approx. $4.24 |
| Tri-Clamp ferrule | 2″ size, 1.125″ overall length | 304 | 32RA ID/OD | 4.06 USD |
| TC sanitary ferrule | Three-inch size | 316L | 32RA ID/OD | 6.15 USD |
| Double-bolt high-pressure clamp | 1.5 inch | 316 | Polished | 12.93 USD |
| High-pressure double-bolt clamp | 2 inch | Type 316 stainless steel | Polished finish | 14.62 USD |
| High-pressure sanitary clamp | Three-inch size | 316 stainless | Polished finish | $20.26 |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to check availability, finishes, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, prioritize catalogs that clearly separate 304 from 316L, state surface finish, and cite applicable standards. A targeted Sanitary Fittings Catalog search can streamline procurement and reduce returns on critical process components.
Conclusion
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in various industries. Choosing between 304 and 316L, along with finishes such as 32RA or electropolishing, directly supports cleanability. This lowers contamination risks significantly. Ensuring Tri Clover Fittings and related parts meet standards such as DIN 32676 is important for tight Sanitary Connections and easier interchangeability.
When choosing fittings, evaluate material grade, surface finish, connection type, and pressure needs. This includes Tri-Clamp, weld, hose, or threaded connections, based on pressure, product contact, and regulatory requirements. High-pressure clamps should be used where necessary. Consistency in gaskets, clamps, and ferrules reduces leaks and simplifies maintenance. Proper installation and regular cleaning extend fitting life and support compliance with hygiene standards.
Catalogs show competitive pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When searching for where to buy sanitary fittings, choose reputable U.S. suppliers. Those suppliers should list specifications, finishes, standards, and part details to confirm compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and trusted sources minimize downtime. This supports product quality in hygienic processing environments.
