What type of clamp will provide the best seal quality and the fastest install on a hectic production line? I set the stage for industrial buyers by laying out the complete range I use at Installation Parts Supply so you can pair the correct clamp to your application and buy confidently.
Shop For Oeticker Clamps
The inventory includes 304 stainless steel options like Stepless Style Pinch (Ear) Series 167, mini worm gear options, CV boot designs, Dualhook polymer rings, and PEXGrip® pieces that span a broad size spectrum and dimensions.
I detail why I prefer 304 stainless for air lines, liquid transport, and pipework, when I pick stepless ear styles for even pressure, and when a worm gear is better for service needing adjustment. I also outline the toolsets and packages I rely on so your team keeps assembly efficient and quality high.
Highlights
- I evaluate items by series, width, diameter range, and material to accelerate choosing.
- 304 stainless provides the superior rust protection for most industrial uses.
- Stepless ear gives uniform sealing; worm drives fit repeat service.
- Shop assortments and tool choices reduce downtime and rework.
- Align the clamp style to stress, movement, and usage for durable joints.
Guide To Oetiker Clamps: Varieties, Series, And Applications At IPS
I map each series I stock to practical applications enabling you to buy the precise item your job requires.

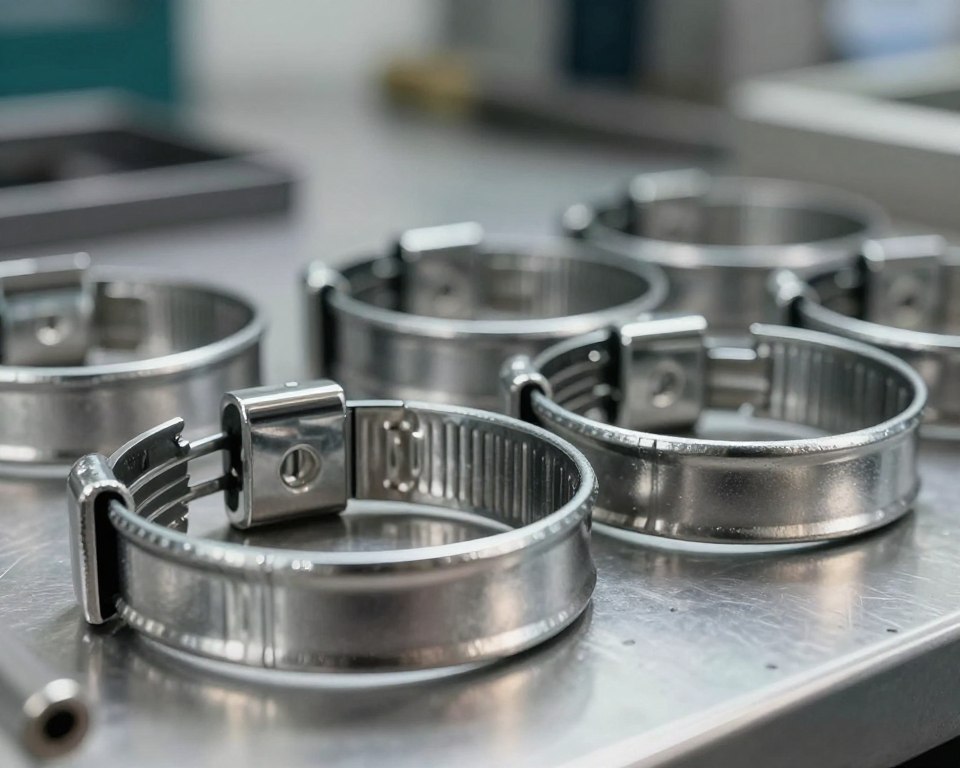

I recommend the 167 Stepless Ear series for 360-degree, gap-free compression on hose connections. The 3/16-inch strap covers diameters from 3/16″ to 7/16″; the 1/4-inch strap fits 3/8″–2-1/4″. Use these when uniform compression and long-term sealing are critical.
When adjustability is needed, I pick the mini worm drive variants. The 3/16″ embossed band with a 304 stainless screw serves 1/2″–8-5/8″. The winged key clamp provides adjustment without tools from 1/4″–3-1/8″.
CV Joint, PEX Tubing, And Assortment Kits
For constant velocity boots I compare Series 163 adjustable rings to Dualhook polymer clamps in stainless steel. Match width (1/4″ or 3/8″) to boot groove and torque needs.
I specify PEXGrip® 1/4-inch clamps for pipes. They are pre-set, certified by NSF, ASTM, and CSA, and prevent sliding. I consistently highlight the PEX cautions for chlorinated water and necessary fittings.
| Series | Material | Width | Diameter Range | Application |
|---|---|---|---|---|
| Series 167 | 304 SS | 3/16″ / 1/4″ | Small to Large | Sealed hose connections |
| Mini Worm | 304 SS | Small | Wide range | Adjustable service lines |
| CV Clamps | Steel / Polymer | 1/4″ / 3/8″ | 15/16″–4-5/16″ / 1/2″–4-3/4″ | CV repair |
| PEXGrip® | 304 SS | Quarter Inch | 3/8″–1″ | Plumbing |
- I stock service kits for quick assembly: stepless ear assortments, beverage sets, welding repair, and a CV Expertainer for aftermarket bays.
- I validate band width, material grade, and size constraints to match conditions before I approve selection.
Installation Tools: Maximizing Performance With Hand And Powered Gear
The correct manual or electric tool ensures repeatable, leak-proof closures fast on the shop floor.
I pick specific pincers and manual tools to suit every type and avoid damage to hose fittings. When access is straight, I use the Compound Action Standard Jaw Pincer 497. In cramped spaces, the side jaw 499 lets me close ears without distortion.
The 519 cutter removes PEX rings cleanly and prevents nicks leading to repairs. For manual fitting on PEX and CV jobs, I choose the two-handle 069 for light cycles and the three-handle 280 for more force.
Powered And Cordless Options
I boost throughput with HO 3000 ME (Jaw 7.5 / Gap 13.2 / Ear 10 mm) and HO 5000 pneumatic (larger specs). For mobile work, I field CP10 (Jaw 10.2) and CP20 (Jaw size 10.5).
- I check ear size and series prior to jaw choice to prevent over-travel and clamp damage.
- I train crews to align the ear squarely and to use the right gap for repeatable crimp rings.
- I maintain a small set of essential tools ensuring technicians complete jobs efficiently.
Selection Strategy: Picking Oetiker Clamps For Industry
I work from standards and align with tooling ensuring every joint meets spec and lasts.
Compliance And Safety
I begin with verifying certifications: cNSFus-PW, ASTM F2098/F877, and CSA B137.5 for potable and pressure systems. With PEXGrip® items, I require the NSF listing and the ASTM references before approval.
I mandate PEX warnings up front—avoid plastic fittings in chlorinated environments, keep assemblies off concrete, and use only ASTM F1807 or F2159 insert fittings. I record these details in reports for regulatory adherence.
Correct Sizing And Durability
I gauge the outer diameter with the insert installed, then pick a size range that centers the band in mid-range. That practice yields consistent compression and cuts down on fixes.
- I pair strap width to hose wall or groove: 3/16″ for tiny hoses, larger widths for higher contact area.
- I default to 304 SS when corrosion resistance and life span are important.
- I weigh stepless ear to worm gear by sealing need—stepless for uniform seal, worm gear for frequent adjustment.
| Code | Usage Context | Key check |
|---|---|---|
| NSF/ASTM | Potable PEXGrip® | Cert & Fitting |
| Stainless 304 | Fluids & Air | Environment & vibration |
| Band width | Hose Sizes | Groove fit & diameter |
Conclusion
Summary
I encourage you to view the available 167 series, mini worm gear, 163 CV, Dualhook rings, and PEXGrip® choices I stock allowing you to pick the right product quickly.
I also stock workshop kits—81‑pc stepless ear, 301‑pc beverage, 81-piece welding sets, and the 124-piece CV kit—along with hand and powered tools to keep installs consistent.
For assistance sizing bands, clamp styles, or tools to tasks, contact me and I’ll build a kit that meets your needs.
Shop for oetiker clamps from IPS today for fast fulfillment nationwide.
