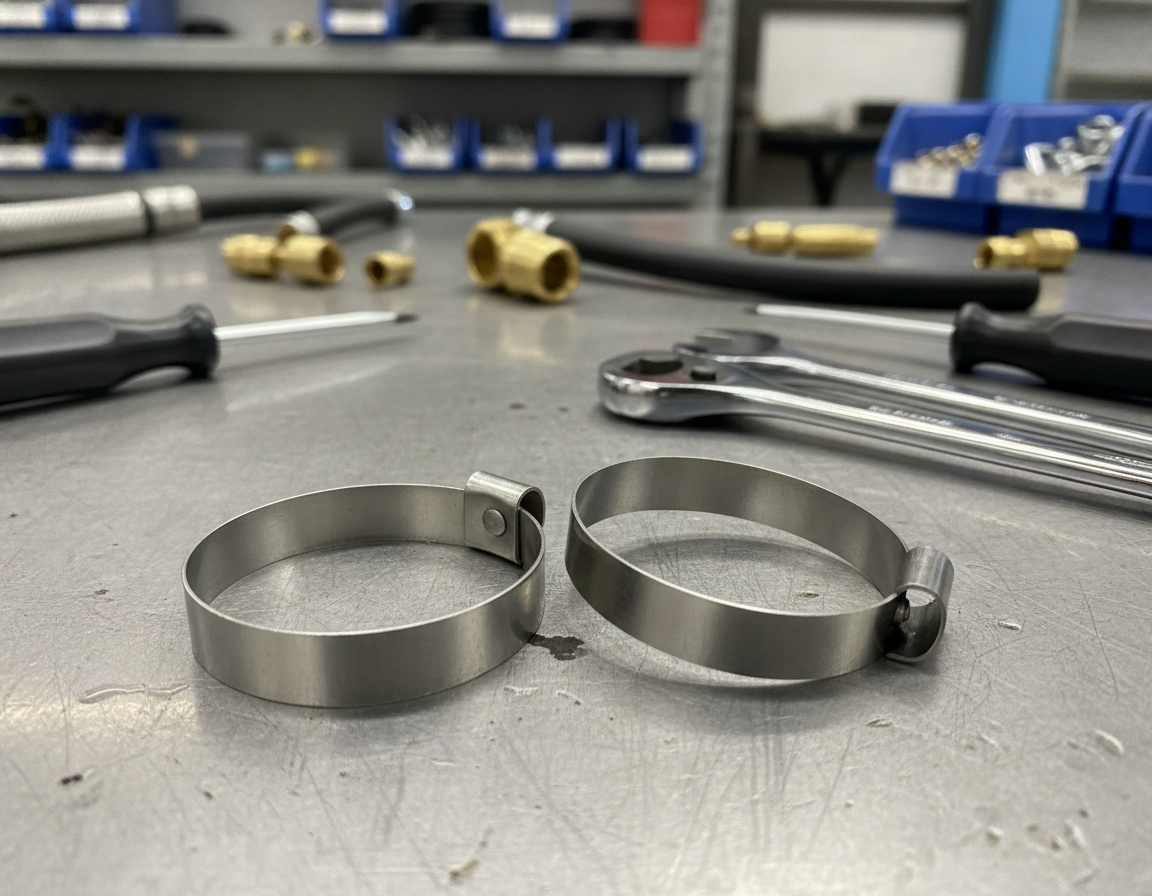

Stepless Ear Clamps offer a specialized solution for hose connections, ensuring a tight seal. Because the band is continuous and step-free, pressure is distributed more evenly around the hose. This reduces pressure points and greatly reduces leak risk compared to traditional clamps.
Pinch Clamp Size Chart
Stepless Ear Clamps are common in automotive, industrial, and boat-related hose assemblies where a dependable seal matters. They also serve plumbing work, PEX tubing jobs, repair tasks, and home workshop projects. Many models use stainless steel construction, and Group 167 Stepless® clamps commonly feature a 7 mm band width to help provide consistent compression.
Among clamp manufacturers, Oetiker Inc. is strongly associated with Oetiker Clamp products and the Stepless® clamp family. Many Oetiker® Group 167 stepless ear clamps are packaged in 100-piece quantities for convenient ordering. For instance, Oetiker® 16705828, suitable for 1.547″–1.673″ / 39.3 mm–42.5 mm diameters, is packaged 100 per bag. With each bag weighing about 4 lbs, buyers can more easily plan storage, shipping, and inventory control.
Why Stepless Ear Clamps Work Well For Hose Fittings
Stepless Ear Clamps provide a simple, dependable solution for hose connections. Their continuous band design ensures uniform compression around the hose. This uniform pressure reduces high-stress points and promotes long-term seal integrity.
Leak Prevention Through Uniform Compression
A reliable hose seal depends on even radial pressure around the connection. Stepless Ear Clamps create uniform pressure, avoiding the gaps that worm-gear clamps often create. Engineers frequently select Oetiker Clamp products for their consistent clamping force, which is critical for PEX, coolant, or fuel lines.
Durable Stainless Construction And Rust Resistance
Stainless steel helps these clamps resist corrosion in wet, salty, hot, or demanding environments. Automotive, marine, and industrial systems depend on the durability of quality Stepless Ear Clamps. Some models meet ASTM-related guidelines for plumbing and PEX installations, ensuring long-term reliability.
Reduced Hose Damage And Burr-Free Edges
Narrow band width and burr-free edges limit abrasion during installation and service. A burr-free Oetiker Clamp ensures minimal cutting into flexible tubing while maintaining firm retention. Together, smooth edges and even pressure help reduce premature hose failure and extend service life.
| Design Feature | Practical Benefit | Common Application |
|---|---|---|
| Uniform compression | Balanced pressure with fewer potential leak paths | Fuel systems, cooling lines, and PEX tubing |
| Corrosion resistant | Long service life in wet or salty environments | Marine lines and exposed equipment |
| Smooth clamp edges | Lower abrasion risk during installation and service | Soft hose materials and flexible tubing |
| Continuous-band ear clamps | Uniform grip around the hose circumference | High-retention applications |
| Oetiker clamp design | Trusted clamp engineering for repeated installations | Original equipment and replacement applications |
How To Select The Right Stepless Ear Clamp And Pinch Clamp Size Chart
Choosing the right clamp starts with precise measurement and a thorough review of the Pinch Clamp Size Chart. When the correct Stepless Ear Clamp is chosen, the connection is less likely to leak, crush the hose, or fail early. Here are straightforward steps to help you make the right choice and ensure a perfect fit.
Measure the hose outside diameter only after the fitting has been fully seated inside the hose. Write down the assembled outside diameter in either inches, millimeters, or both. For best results, choose a clamp range that places the measured hose O.D. near the middle of the listed range.
Oetiker 167 Series Stepless® Ear Clamps are a useful example for understanding range selection. If the Oetiker Inc. spec ranges from 1.547″–1.673″ (39.3mm–42.5mm), select a clamp that positions your measured O.D. near the midpoint. That sizing approach helps avoid clamps that are too loose or too aggressively compressed.
Interpreting a Pinch Clamp Size Chart means examining minimum and maximum closure diameters and aligning series details with your application. Ear width, band width, and band thickness also matter because they affect clamping force, fit, and pressure distribution.
The chart should be used to compare the clamp’s ear width, band width, and band thickness before ordering. For example, 167 Series Stepless® Ear Clamps may list a 10.0mm ear width, 7mm band width, and 0.6mm band thickness. The clamp ear should reduce by at least 40% during crimping so adequate clamping force is achieved.
Material and specification choices affect longevity and compliance. Stainless steel is often chosen for its corrosion resistance and durability. Confirm adherence to plumbing or PEX standards when necessary and verify manufacturer SKUs for exact matches.
Before placing an order, review the packaging quantity, SKU, and listed size range. Many Stepless Ear Clamps are sold in 100-piece bags. Ensure part numbers from Oetiker Inc. and suppliers match your needs for correct quantities and appropriate band width.
Best Installation Practices For Long-Term Clamp Reliability
Proper installation is critical to a hose assembly’s longevity. Use safe Stepless Ear Clamp installation steps, choose the correct crimping tool, and keep enough clamps on hand to avoid repair or production delays.
Correct Stepless Ear Clamp Procedure
Begin by fully inserting the fitting into the hose. Place the clamp where it can seal properly and where the ear can be reached by the crimping tool. Use a dedicated ear clamping tool to seat the clamp and avoid twisting the band. For dual-ear designs, compress the first ear, then the second to obtain uniform compression around the hose.
Target ear deformation should produce clamp ears reduction of at least 40 percent. When the clamp is correctly sized, the ear should not have to close completely to achieve sealing force. After installation, inspect the band, hose, and fitting for even contact, visible gaps, cuts, or other damage.
Recommended Tools And Safety Tips
Choose a crimping tool designed for the clamp series so the ear deforms correctly without damaging the hose. Oetiker® ear clamping tool models are common choices in professional shops for reliable results.
When crimping clamps, wear gloves and eye protection to reduce risk from slips, edges, or metal fragments. Avoid improvised tools that create uneven crimps or sharp edges. For repeated production work, bench-mounted or powered crimpers can improve consistency and reduce operator fatigue.
Packaging And Quantity Notes For Buyers
Many industrial suppliers package Stepless Ear Clamps in 100-piece bags. Purchasing by the bag helps maintain inventory for repairs, maintenance, assembly work, and production runs.
Before ordering, check the SKU, bag weight, clamp range, material, and series details. Installation Parts Supply offers common clamp sizes and related tools; verify part numbers and order spare clamps to cover rework or replacements.
| Item | Usual Package | Approximate Bag Weight | Ordering Notes |
|---|---|---|---|
| Small-size stepless clamp | Bag of 100 | approximately 2 lb | Confirm O.D. range and material; keep spares for repairs |
| Medium-size stepless clamp | 100-piece bag | ~3 lb | Match bag quantities to expected usage and production timing |
| Large Stepless Ear Clamp | 100 per bag | ~4 lb | Verify SKU and size; check clamp ears reduction spec |
| Ear clamping tool | one tool per package | about 1.5 lb | Use the correct tool to avoid uneven deformation and damaged clamps |
Trusted Brands And Buying Sources For Oetiker Clamp Products
Choosing the right supplier is critical when you need reliable hose clamps. Technicians need trusted brands, clear specifications, and accurate product details to choose the correct part. They help ensure parts meet code and performance standards. Before ordering, review supplier resources for size range, material, packaging quantity, and manufacturer part number.
Oetiker Inc. is well known for its stepless clamps, widely used in plumbing and industrial sectors. Many Stepless® Ear Clamps use stainless steel construction with specifications such as a 7mm band width and 0.6mm band thickness. For example, Oetiker 16705828 covers 1.547″–1.673″ (39.3mm–42.5mm) and is commonly sold in 100-piece bags.
Oetiker Inc. Product Highlights
Oetiker Clamp products are commonly valued for even compression, secure retention, and corrosion resistance. Burr-free edges help protect PEX tubing, rubber hose, and other flexible materials from cuts and abrasion. Typical packaging details include the part number, diameter range, and bag quantity, which makes purchasing and inventory checks easier.
What To Check When Comparing Suppliers
When reviewing suppliers, confirm that the parts are authentic and that the listed material specifications are complete. Ensure stainless steel grade, band width, ear width, and band thickness match your needs. Cross-check part numbers and packaging counts for compatibility.
A useful supplier should provide accurate product information, measurement guidance, and access to a pinch clamp size chart. Clear measuring instructions and proper crimping tools help reduce sizing and installation errors. Consider lead times, shipping costs, and minimum order quantities. A 100-piece bag typically weighs around 4 lbs for shipping estimates.
Online Ordering Through Installation Parts Supply
Installation Parts Supply offers clamps, fittings, and tools for contractors and maintenance teams. When buying online, confirm clamp series, size range, material, and packaging before checkout. Use product pages and size charts to ensure correct selection.
Request technical data or specifications from the supplier for code compliance or warranty documentation. Detailed product pages and responsive customer support help prevent ordering the wrong size, chart reference, or Oetiker Clamp series.
Conclusion
Stepless Ear Clamps provide significant advantages for those requiring dependable hose fittings. They support uniform compression, which minimizes leaks and damage to hoses. This is true across various sectors, including automotive, marine, industrial, plumbing, and PEX applications. Stainless steel Oetiker Clamps support long-term corrosion resistance and consistent service performance.
For those purchasing and installing, the key points are simple. Accurate measurement of hose O.D. is essential. It’s also important to refer to a pinch clamp size chart and choose a clamp with a range that matches the O.D. Proper use of an ear clamping tool is necessary to achieve at least 40% ear reduction. This ensures the designed clamping force and seal are achieved.
When buying clamps, verify specifications such as band thickness, band width, ear width, and diameter range. Many prefer Oetiker Inc. Stepless® Ear Clamps, such as Group 167 with a 7mm band width. These are available in bulk packaging of 100 per bag. Reliable distributors such as Installation Parts Supply provide product listings, size chart resources, installation tools, and related accessories. These resources help U.S.-based buyers select and install the correct clamps with greater confidence.
